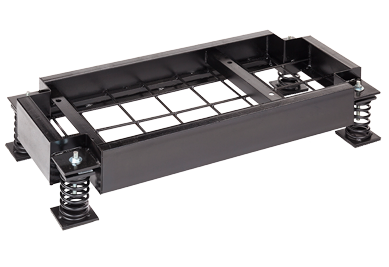

VMC Group Structural Channel Inertia Bases consist of a structural steel channel perimeter frame, reinforced steel and equipment mounting templates with anchor bolts. The Structural Channel Inertia Base design is flexible and can be ordered with several options based on customer requirements. Seismic spring isolators and attachment brackets are sold separately. Structural Channel Inertia Base Pouring Forms are available in base thicknesses of 3" - 12" inches and can be manufactured in rectangular or t-shaped configurations. Spring deflections in 1" and 2" are available.
Features & Benefits
- Reinforced steel frame
- Available in multiple deflections
- Available in multiple thicknesses
- Seismic capacity up to 2.0g
- International Building Code® (IBC) compliant
Applications
- Pumps
- Fans
- Compressors
- Chillers
- Other equipment
