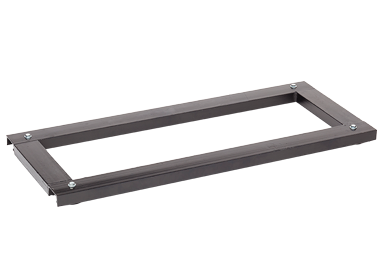

VMC Group Double Deflection Neoprene Rails are simple angle iron or channel non-unitized rails with elastomeric isolators mounted underneath the steel members. Double deflection neoprene rails are for use with stable, non-thrust, non-rotational force type equipment. The rails combined with the elastomeric isolators provide a mounting base and high frequency noise attenuation.
Features & Benefits
- Isolators factory attached to rails
- Low cost
- Easy installation
- Custom sizes available upon request
Applications
- Pumps
- Fans
- Compressors
- Chillers
- Other non-rotational equipment
