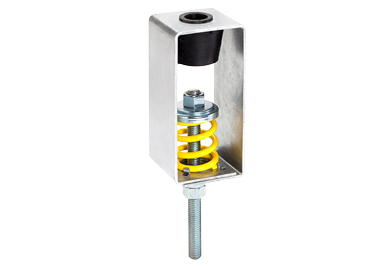

HRSA-PR Series Pre-compressed Spring & Elastomeric Angularity Hangers are designed to isolate low and high frequency vibrations in suspended piping and equipment - preventing transmission of vibration to the building structure through the piping systems. The products incorporate a color-coded steel spring for ease of identification in the field. Load ranges from 21 - 8,200 lbs. and up to deflections of 3". Custom sizes and deflections up to 5" available upon request.
VMC Group HRSA-PR Pre-compressed Spring & Elastomeric Angularity Hangers combine both a pre-compressed feature along with 30° of angularity for misalignment of hanger rods. The pre-compressed designs are pre-compressed to the rated deflection so as to support the suspended equipment or piping at a fixed elevation during installation regardless of load changes. The angularity hangers have a 30° misalignment capability, spring diameters and hanger box lower hole sizes are sufficiently sized to permit the hanger rod to swing approximately 30° before contacting the box.
The HRSA-PR Pre-compressed Series also offers the capability to incorporate eyebolt hardware to accommodate duct strap connections and/or pencil rods, when isolating ductwork and suspended ceilings.
Features & Benefits
- Loads from 21 - 8,200 lbs. with static deflections up to 3” provide flexibility over a wide range of applications
- Pre-compressed hangers offer quick and easy installation in even the most challenging locations
- Lower hanger rod enables a 30⁰ swing to compensate for rod misalignment and prevents short circuits to the hanger box
- Color-coded springs provide easy identification of spring hangers for installation and inspection
- Combined elastomeric and spring for both low and high frequency isolation in one hanger box
Applications
- Suspended piping
- Suspended electrical services
- Suspended equipment
- Suspended ductwork
DOWNLOADS
Submittal Drawings
- 1" Deflection
- Model HRSA-1B 20-85 lbs Pre compressed elastomeric and spring anugularity hangers 1 inch deflection_rev.3
- Model HRSA-1C 50-370 lbs. Pre compressed elastomeric snd spring angularity hangers 1 inch deflection_rev.3
- Model H2RSA-1E 1650-6500 lbs. Pre-Compressed Elastomeric and Spring Angularity Hanger 1 inch deflection_rev.3
- Model HRSA-1E-195-2000 LBS. Pre-compressed Elastomeric and Spring Angularity Hangers 1 inch deflection_rev.3
- Model HRSA-1E-D-400-2000 LBS. Pre-compressed Elastomeric and Spring Angularity Hangers 1 inch deflection_rev.3
- Model HRSA-1G 3600 lbs. Pre compressed elastomeric and spring angularity hangers 1 inch deflection_rev.2
- 2" Deflection
- Model HRSA-2D 75-845 lbs. Pre-compressed Elastomeric and Spring Angularity Hangers 2 inch deflection_rev.5
- Model HRSA-2E 80-2050lbs. Pre compressed elastomeric and spring angularity hangers 2 inch deflection_rev.2
- 3" Deflection
- Model HRSA-3C 75-600 lbs. Pre compressed elastomeric and spring angularity hangers 3 inch deflection_rev.2
