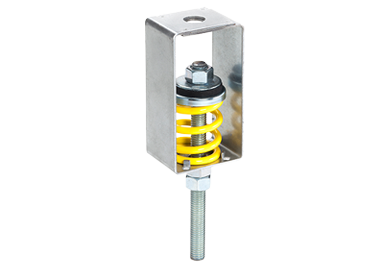

HSA-PR Series Pre-compressed Spring Angularity Hangers are designed to isolate low frequency vibrations in suspended piping and equipment - preventing transmission of vibration to the building structure through the piping systems. The products incorporate a color-coded steel spring for ease of identification in the field. Load ranges from 21 - 8,200 lbs. and up to deflections of 3". Custom sizes and deflections up to 5" available upon request.
VMC Group HSA-PR Pre-compressed Spring Angularity Hangers combine both a pre-compressed feature along with 30°of angularity for misalignment of hanger rods. The pre-compressed designs are pre-compressed to the rated deflection so as to support the suspended equipment or piping at a fixed elevation during installation regardless of load changes. The angularity hangers have a 30° misalignment capability, spring diameters and hanger box lower hole sizes are sufficiently sized to permit the hanger rod to swing approximately 30° before contacting the box.
The HSA-PR Pre-compressed Series also offers the capability to incorporate eyebolt hardware to accommodate duct strap connections and/or pencil rods, when isolating ductwork and suspended ceilings.
Features & Benefits
- Loads from 21 - 8,200 lbs. with static deflections up to 3” provide flexibility over a wide range of applications
- Pre-compressed hangers offer quick and easy installation in even the most challenging locations
- Lower hanger rod enables a 30⁰ swing to compensate for rod misalignment and prevents short circuits to the hanger box
- Color-coded springs provide easy identification of spring hangers for installation and inspection
Applications
- Suspended piping
- Suspended electrical services
- Suspended equipment
- Suspended ductwork
DOWNLOADS
Spec Sheets
Submittal Drawings
- 1" Deflection
- Model HSA-1B 20-85 lbs. Pre compressed spring angularity hangers 1 inch deflection_rev.2
- Model HSA-1C 50-370 lbs. Pre compressed spring angularity hangers 1 inch deflection_rev.2
- Model HSA-1E 195-2000 lbs. Pre compressed spring angularity hangers 1 inch deflection_rev.2
- Model HSA-1G 3600 lbs. Pre compressed spring angularity hangers 1 inch deflection_rev.2
- 2" Deflection
- Model HSA-2D 75-845 lbs. Pre compressed spring angularity hangers 2 inch deflection_rev.2
- Model HSA-2E 80-2050 lbs. Pre-Compressed Spring Angularity Hangers 2 inch deflection_rev.2
- 3" Deflection
- Model HSA-3C 75-600 lbs. Pre compressed spring angularity hangers 3 inch deflection_rev.2
