ASCM Isolators

The ASCM Series Spring-Flex seismic isolators are designed for use in both seismic applications and where vertical restraint is required. The ASCM Series are ideal for use under fans, air handling units, pumps, chillers, or any type of equipment requiring vertical and horizontal restraint.

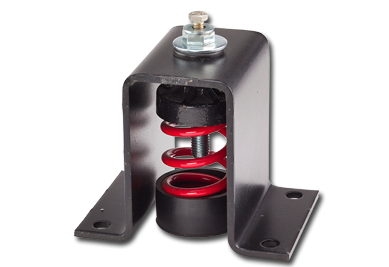

The design of the ASCM isolators incorporate a laterally stable steel spring within a steel housing. The low frequency steel spring is seated in an elastomeric acoustical cup that provides high frequency attenuation and eliminates metal-to-metal contact. All springs are color coded for ease of identification in the field.

The adjusting bolt of the isolator provides equipment-leveling capability and passes through the steel housing which is protected by an elastomeric grommet that eliminates metal-to-metal contact, while providing a cushion during a seismic event. The leveling bolt also incorporates an adjustable upward rebound nut that limits vertical motion to 1/4".

The steel housing of the ASCM isolator provides vertical and horizontal restraint capability and keeps the equipment captive to the building structure during a seismic event. The bolt holes in the base plate of the isolator are properly sized and spaced to provide the maximum amount of restraint capability.
