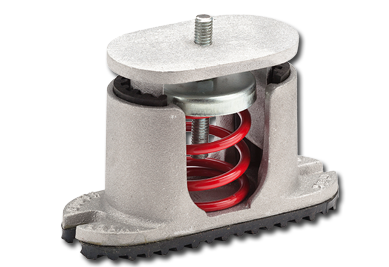

VMC CAL Series Spring-Flex Isolators are cast aluminum-housed, adjustable spring isolators with telescoping top and bottom sections separated by resilient elastomeric inserts to limit horizontal motion. A non-skid elastomeric pad is bonded to the base plate, eliminating the need for bolting. They are available in four mounting styles; style CAL-E (positioning bolt and nut), CAL-H (flat top plate), CAL-P (positioning pin), CAL-T (non-skid, ribbed elastomeric pads bonded to the top).
The aluminum construction makes the isolators ideal for corrosive environments. They are available in 1" and 2" deflections for loads from 50 to 7,140 pounds.
Features & Benefits
- Several mounting options with or without bolts permit superior versatility over a wide range of applications
- Cast aluminum is corrosion resistant and offers exceptional durability and weather resistance
- Internal or external leveling permits installation anywhere regardless of accessibility or the location of bolts in the machine base or foundation
- Telescoping housing provides lateral resistance
- Color-coded springs provide easy identification from installation to inspection
- Powder-coated finish on the springs offers improved corrosion resistance
- Can be used in chemical applications where the chemical in use is not reactive to aluminum, but may be reactive to cast iron or steel
- Available in 1" and 2" deflections
Applications
- Air handling units
- Air conditioners
- Engine gensets
- Compressors
- Chillers
- Pumps
- Condensers
- Marine
DOWNLOADS
Submittal Drawings
- 1" Deflection
- Model CALE-1B 20-85 lbs. Alum. spring isolators snubbed with external adjustment 1 inch deflection_rev.3
- Model CALE-1C 50-520 lbs. Alum. spring isolators snubbed with external adjustments 1 inch deflection_rev.4
- Model C4ALE-1D 340-7140 lbs. Alum. spring isolators snubbed with external adjustments 1 inch deflection_rev.6
- Model CALE-1D 85-1785 lbs. Alum. spring isolators snubbed with external adjustment 1 inch deflection_rev.3
- Model CALE-1E 195-3250 lbs. Alum. spring isolators snubbed with external adjustment 1 inch deflection_rev.5
- Model CALH-1B 20-85 lbs. Alum. spring isolators snubbed with internal adjustment 1 inch deflection_rev.4
- Model CALH-1C 50-520 lbs. Alum. spring isolators snubbed with internal adjustments 1 inch deflection_rev.4
- Model C4ALH-1D 340-7140 lbs. Alum. spring isolators snubbed with external adjustment 1 inch deflection_rev.6
- Model CALH-1D 85-1785 lbs. Alum. spring isolators snubbed with internal adjustments 1 inch deflection_rev.3
- Model CALH-1E 195-3250 lbs. Alum. spring isolators snubbed with internal adjustment 1 inch deflection_rev.5
- Model CALP-1B 20-85 lbs. Alum. spring isolators snubbed with internal adjustments and positioning pin 1 inch deflection_rev.3
- Model CALP-1C 50-520 lbs. Alum. spring isolators snubbed with internal adjustments and positioning pin 1 inch deflection_rev.4
- Model C4ALP-1D 340-7140 lbs. Alum. spring isolators snubbed with internal adjustment and positioning pin 1 inch deflection_rev.6
- Model CALP-1D 85-1785 lbs. Alum. spring isolators snubbed with internal adjustments and positioning pin 1 inch deflection_rev.4
- Model CALP-1E 195-3250 lbs. Alum. spring isolators snubbed with internal adjustments and positioning pin 1 inch deflection_rev.5
- Model CALT-1B 20-85 lbs. Alum. spring isolators snubbed with internal adjustments and elastomeric pad-covered top plate 1 inch deflection_rev.3
- Model CALT-1C 50-520 lbs. Alum. spring isolators snubbed with internal adjustment and elastomeric pad-covered top plate 1 in deflection_rev.3
- Model CALT-1D 85-1785 lbs. Alum. spring isolators snubbed with internal adjustments and elastomeric pad covered top plate 1 inch deflection_rev.2
- Model C4ALT-1D 340-7140 lbs. Alum. spring isolators snubbed with internal adjustment and elastomeric pad-covered top plate 1 inch deflection_rev.6
- Model CALT-1E 195-3250 lbs. Alum. spring isolators snubbed with internal adjustment and elastomeric-covered top plate 1 inch deflection_rev.5
- 2" Deflection
- Model CALE-2D 75-1640 lbs. Alum. spring isolators snubbed with external adjustment 2 inch deflection_rev.6
- Model CALH-2D 75-1640 lbs. Alum. Spring Isolators snubbed with internal adjustments 2 inch deflection_rev.6
- Model CALP-2D 75-1640 lbs. Alum. spring isolators snubbed with internal adjustments and positioning 2 inch deflection_rev.6
- Model CALT-2D 75-1640 lbs. Alum. Spring Isolators Snubbed with Internal Adjustment and Elastomeric Pad-Covered Top Plate 2 inch deflection_rev.6
