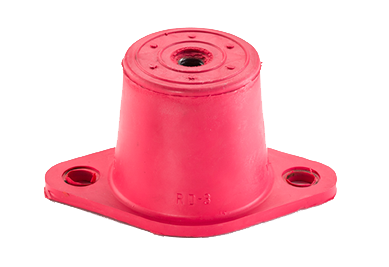

The RD Series are elastomeric flush-type isolators that provide effective vibration control for use directly under HVAC, power generation and electrical equipment in conjunction with the equipment's mounting holes.
The RD Series have ribbed, non-skid bases and may be installed with or without bolting the isolators to the equipment. No bolting is required under equipment that has no lateral or severe vertical motion. The RDP version offers an isolator with a pin for inaccessible bolt holes.
The RD Series isolators are embedded in colored elastomer. This color-coding system permits instant identification of loading capacities, and prevents installation errors. The RD Series offer deflections to 0.50". Four different sizes offer a load capacity range of 10 to 4,000 lbs. per isolator - offering isolators that may be accurately selected for the equipment weight.
Features & Benefits
- Static load range of 35 - 4,000 lbs. offers solutions for a wide range of equipment weights
- 0.50” Load deflection provides accurate selection of isolators based on equipment requirements
- Tapped bolt holes permit more secure installation if required
- Ribbed isolator base provides a non-skid surface-eliminating the need to bolt machinery to the isolators
- Elastomer-coated isolators are color-coded for easy identification
- Contact The VMC Group for other engineered elastomeric compounds
- Weather-resistant Durulene™ elastomer
Applications
- Air handling units
- Fans
- Pumps
- Chillers
- Air compressors
- HVAC equipment
- Power generation
- Electrical transformers
DOWNLOADS
Spec Sheets
Submittal Drawings
- Model RD1 35-0-170 lbs. Sleeper Low profile elastomeric 0.4 deflection_rev.1
- Model RD1 35-0-170 lbs. Sleeper Low profile elastomeric 0.4 deflection_rev.1
- Model RD1 35-170 lbs. Durulene Elastomeric Isolator 0.4 inch deflection_rev.3
- Model RD1 35-170 lbs. Elastomeric Isolator 0.4 inch deflection_rev.3
- Model RD3 250-1100 lbs. Durulene elastomeric isolator 0.5 inch deflection_rev.3
- Model RD3 250-1100 lbs. Elastomeric isolator 0.5 inch deflection_rev.2
- Model RD4 1500-4000 lbs. Elastomeric isolator 0.5 inc deflection_rev.2
- Model RD4 750-6000 lbs. Durulene elastomeric isolator 0.5 inch deflection_rev.7
- Model RD2 135-550 LBS. Durulene Elastomeric Isolator 0.5 inch deflection_rev.3
- Model RD2 135-550 LBS. Elastomeric Isolator 0.5 inch deflection_rev.3
- Model RDX1 35-170 lbs. Bridge Bearing Elastomeric Isolator 0.4 inch deflection_rev.2
- Model RDX1 35-170 lbs. Nitrile Elastomeric Isolator 0.4 inch deflection_rev.2
- Model RDX2 170-550 LBS. Nitrile Elastomeric Isolator 0.5 inch deflection_rev.2
