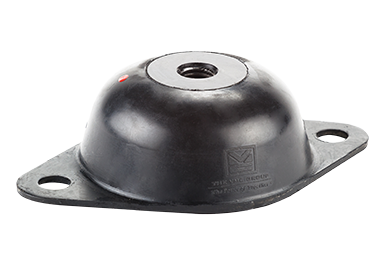

VMC Group TTB Series Flush-Type, Failsafe Elastomeric Isolators provide effective shock and vibration control in failsafe applications. They are commonly found in the engines, radiators, chassis' and other components of ground support equipment.
The TTB Series housings are low profile designs ideal for installations with space restrictions. Structural sections are made of carbon steel for optimum strength and durability. All metal surfaces have a corrosion-resistant coating that provides extra protection and long-life.
The elastomeric coatings resist oils, ozone and most solvents - providing optimum resilience in most conditions. The failsafe design offers built-in snubbing that prevents the elastomeric elements from coming in contact with the housing. The operating temperature range of -20°F to 180°F offers continuous operation in all ambient conditions.
Features & Benefits
- Offers several solutions for light and medium load applications
- Low natural frequency of 9 Hz at maximum load provides structure-borne noise attenuation in even the most difficult environments
- Low profile housing design permits vertical installation where space is restricted
- Built-in, failsafe snubbing keeps equipment secure
- Damping ratio of 5:1 offers excellent energy dissipation
Applications
- Engines
- Radiators
- Chassis'
- Other components
