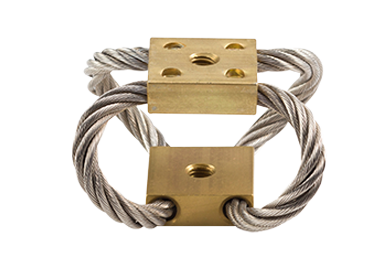

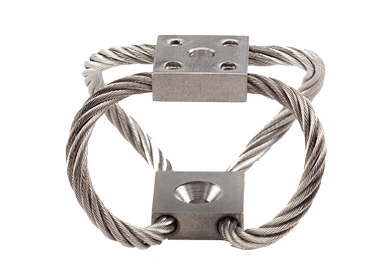

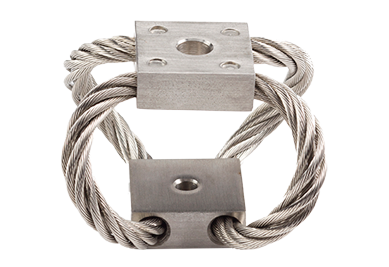

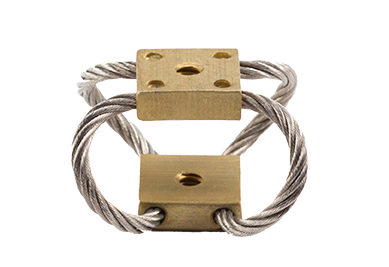

JSQ Square Wire Rope Isolator

JSQ Series wire rope isolators are made of captive, flexible wire rope elements with upper and lower attachment plates. The stranded-wire rope elements provide a high degree of damping with measurable, predictable seismic and vibration isolation performance.

JSQ Square Wire Rope Isolators consist of stainless steel and are connected to zinc-plated, low carbon steel mounting discs. The isolators offer three-plane, all-axes isolation that permits use in any attitude - vertically, horizontally and laterally. The isolators offer excellent shock attenuation with low frequency, high vibration isolation damping in a seismic design.

Features & Benefits

Corrosion resistant
Perform well over a wide range of temperatures
Three-plane, all axes isolation
Excellent shock attenuation
Small size isolator requires minimum space while delivering maximum isolation efficiency
Seismic

Applications

Wall mounted HVAC and electrical equipment including closed circuit television and cameras
Computers
Medical equipment
Control panels
