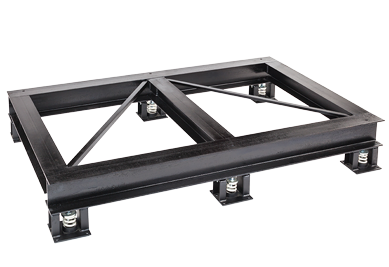

VMC Group Steel Dunnage Platforms are customized structural steel platforms that are unitized to support large equipment. Dunnage platforms are designed for intermediate support between the equipment and rooftop steel. Dunnage platforms can be supplied galvanized or factory assembled with isolators pre-attached and provide continuous support underneath rooftop equipment.
Features & Benefits
- Unitized
- Rig platform with isolators pre-attached
- Provide continuous support for rooftop equipment
Applications
- Cooling towers
- Air-cooled condensers and condensing units
- Rooftop air handling units
- Other large rooftop equipment
DOWNLOADS
Spec Sheets
Submittal Drawings
- 1" Deflection
- Model steel dunnage platform non-seismic 1 inch deflection_rev.2
- 2" Deflection
- Model steel dunnage platform non-seismic 2 inch deflection_rev.2
- 3" Deflection
- Model steel dunnage platform non-seismic 3 inch deflection_rev.2
- 4" Deflection
- Model steel dunnage platform non-seismic 4 inch deflection_rev.2
- 5" Deflection
- Model steel dunnage platform non-seismic 5 inch deflection_rev.2
