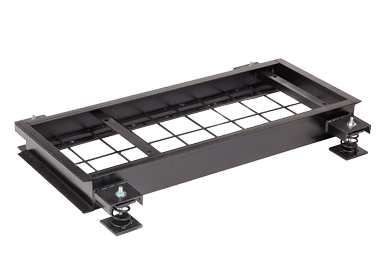

VMC Group Pump Concrete Inertia Base End Suction Pumps consist of structural steel channel perimeter frame, reinforced steel, equipment mounting templates with anchor bolts and open spring isolators with height saving brackets or recessed spring pockets upon request. Spring deflections in 1" - 5" are available. Inertia base thicknesses of 6" - 12" are available.
When Pump Concrete Inertia Base End Suction Pumps are filled with concrete, they become an inertia base and provide an effective means to isolate vibration and limit the motion of suction pumps.
Pump Concrete Inertia Base End Suction Pumps are rectangular in size and are engineered to support the base elbow of a suction pump. The isolator housings are offset with the perimeter of the base.
Features & Benefits
- Reinforced steel frame
- Multiple deflections available
- Various thicknesses available
- Recessed spring pockets available upon request
Applications
- Pumps
DOWNLOADS
Spec Sheets
Submittal Drawings
- 1" Deflection
- Model CPF Non seismic inertia base pump 1 inch deflection_rev.2
- Model MPF 6 inch Non seismic modular pouring form inertia base 1 inch deflection_rev.2
- 2" Deflection
- Model CPF Non seismic inertia base pump 2 inch deflection_rev.2
- Model MPF 6 inch Non-seismic modular pouring form inertia base 2 inch deflection_rev.2
