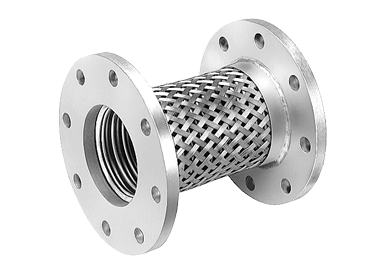

Type SS Stainless Steel flexible connectors can accommodate misalignment and attenuate mechanical vibration transmitted through the pipe wall, but do not attenuate noise. Type SS connectors have superior resistance to long-term temperature effects. For noise attenuation, rubber hose, expansion joints, and spherical connector walls are flexible, they have the ability to grow volumetrically and attenuate noise and vibration at blade-pass frequencies. This is a particularly desirable feature in uninsulated piping systems, such as for condenser water and domestic water, which may run adjacent to noise sensitive areas.
Features & Benefits
- Superior resistance to long-term temperature effects
- Ideal for uninsulated piping systems adjacent to noise sensitive areas
- Available in single or double braided
Applications
- Air handling units
- Fans
- Pump
- Chillers
- Air compressors
- HVAC equipment
- Power generation
- Electrical transformers
- Motors
DOWNLOADS
Submittal Drawings
- Model BR-FS Metal-Flex Freon Flexible Connectors_rev.4
- Model BR-SM-FS Seismic Metal Flexible Connectors Copper Sweat Ends_rev.1
- Model SS-FP Metal Flexible Connectors Flanged Ends_rev.3
- Model SS-PM Metal Flexible Connectors Threaded Ends_rev.3
- Model SS-SM-FP 3 inch Movement Seismic Metal Flexible Connector Flanged Ends_rev.3
- Model SS-SM-PM 3 inch Movement Seismic Metal Flexible Connector Threaded Ends_rev.3
