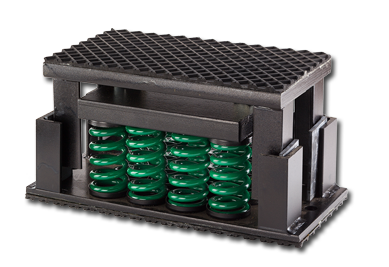

CT Series Spring-Flex Isolators are extremely versatile vibration control isolators for use under HVAC, power generation and electrical equipment. The CT Series feature telescoping housings that provide superior isolation.
The CT Series has non-skid, ribbed elastomeric pads bonded to the top and bottom of the housings for increased stability under equipment that does not require bolting.
The housings are made of cast iron or welded steel for optimum strength and durability. All hardware is stainless steel or zinc-plated. Lightweight cast aluminum housings with electroplated hardware.
Features & Benefits
- Eight housing sizes and several mounting options – with or without bolts - permit superior versatility over a wide range of applications
- Cast iron or welded steel housings offer exceptional durability
- Internal adjustment permits installation anywhere regardless of accessibility or the location of bolts in the machine base or foundation
- Telescoping housing provides lateral resistance
- Color-coded springs provide easy identification for installation and inspection
Applications
- Air handling units
- Air conditioners
- Chillers
- Engine gensets
- Compressors
- Pumps
- Condensers
DOWNLOADS
Submittal Drawings
- 1" Deflection
- Model C12T-1D 4080-20650 lbs. Open spring-flex isolators snubbed with internal adjustments 1 inch deflection_rev.8
- Model C16T-1D 5440-28560 lbs. Open spring-flex isolators snubbed with internal adjustments 1 inch deflection_rev.6
- Model C20T-1D 6800-35700 lbs. Open spring-flex isolators snubbed with internal adjustments 1 inch deflection_rev.7
- Model C2T-1D 680-3570 lbs. Housed cast iron spring-flex isolators snubbed with internal adjustment 1 inch deflection_rev.9
- Model C4T-1D 1360-7140 lbs. Housed cast iron spring- flex isolators snubbed with internal adjustment 1 inch deflection_rev.8
- Model C7T-1D 2380-10400 lbs. Housed Cast Iron Spring-Flex Isolators Snubbed with Internal Adjustment 1 inch deflection_rev.14
- Model CT-1D 85-1785 lbs. Housed cast iron spring-flex isolators snubbed with internal adjustments 1 inch deflection_rev.6
- 2" Deflection
- Model C2DT-2B 380-1530 lbs. Housed cast iron spring-flex isolators snubbed with internal adjustment 2 inch deflection_rev.7
- Model C4DT-2B 760-3060 lbs. Housed cast iron spring-flex isolators snubbed with internal adjustment 2 inch deflection_rev.8
- Model C7DT-2B 1330-5355 lbs. Housed cast iron spring-flex isolators snubbed with internal adjustment 2 inch deflection_rev.8
- Model CDT-2B 190-1000 lbs. Housed cast iron spring- flex isolators snubbed with internal adjustments 2 inch deflection_rev.5
