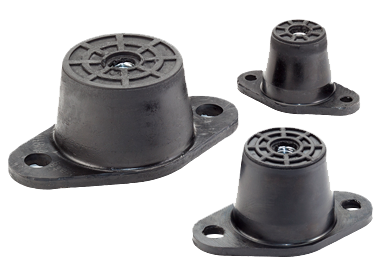

The RVD Series provides effective vibration control for use directly under HVAC, power generation and electrical equipment in conjunction with the equipment's mounting holes.
The RVD Series have a steel baseplate with mounting holes and a threaded insert at the top of the isolator for attaching to equipment. All metal parts are completely embedded in the elastomeric material.
The RVD Series offer deflections to 0.50". Three different sizes offer a load capacity range of 45 to 2,400 lbs. per isolator - offering isolators that may be accurately selected for the equipment weight.
Features & Benefits
- Static load range of 45 - 2,400 lbs. offers solutions for a wide range of equipment weights
- Tapped bolt holes in top of the isolator permit attachment to the equipment and the addition of leveling bolts
- Ribbed isolator base provides a non-skid surface
Applications
- Air handling units
- Fans
- Pumps
- Chillers
- Air compressors
- HVAC equipment
- Power generation
- Electrical transformers
