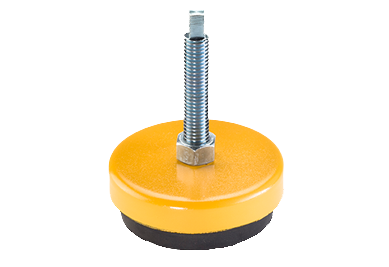

Type VLM Isolators utilize oil-resistant neoprene elastomers to provide effective shock and vibration control for all types of general metal working and processing machinery. Built-in-leveling feature provides height adjustment to compensate for unequal mounting deflection or floor irregularities. Ribbed design of mounting base provides non-skid surface, eliminating the need for bolting to a floor. Cuts machine installation time from hours to minutes. Four sizes provide load capacities up to 12,000 pounds per isolator.
Features & Benefits
- Very wide static load range of 50-12,000 lbs. offers solutions for almost any production floor application
- Built-in leveling provides height adjustment for floor irregularities and/or unequal isolator deflection
- Ribbed isolator base provides a non-skid surface - eliminating the need to bolt machinery to the floor
- Corrosion-resistant coating on all metal surfaces provides extra durability
- Nominal frequency of 10 Hz provides structure-borne noise attenuation in even the most challenging installations
Applications
- Grinders, jig bores, lathes
- Milling machines
- Punch presses, shears, brakes
- Printing presses
- Processing equipment
