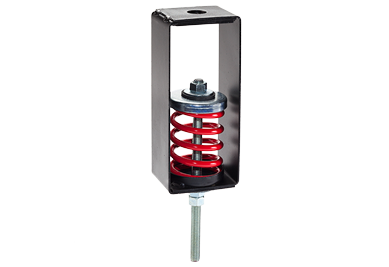

HS-PR Pre-Compressed Series Spring Hangers are designed to isolate low frequency vibrations in suspended piping and equipment - preventing transmission of vibration to the building structure through the piping systems. The products incorporate a color-coded steel spring for ease of identification in the field. Load ranges from 21 - 8,200 lbs. and up to deflections of 3". Custom sizes and deflections up to 5" available upon request.
VMC Group pre-compressed designs are pre-compressed to the rated deflection so as to support the suspended equipment or piping at a fixed elevation during installation regardless of load changes.
The HS-PR Precompressed Series also offers the capability to incorporate eyebolt hardware to accommodate duct strap connections and/or pencil rods, when isolating ductwork and suspended ceilings.
Features & Benefits
- Loads from 21 - 8,200 lbs. with static deflections up to 3” provide flexibility over a wide range of applications
- Pre-compressed hangers offer quick and easy installation for a fixed elevation in even the most challenging locations
- Color-coded springs provide easy identification of spring hangers for installation and inspection
Applications
- Suspended piping
- Suspended electrical services
- Suspended equipment
- Suspended ductwork
DOWNLOADS
Spec Sheets
Submittal Drawings
- 1" Deflection
- Model HS-1B 20-85lbs. Pre compressed spring hangers 1 inch deflection_rev.2
- Model HS-1C 50-370 lbs. pre-compressed spring hangers 1 inch deflection_rev.3
- Model HS-1D 85-1360 lbs. Pre compressed spring hangers 1 inch deflection_rev.2
- Model HS-1E 195-3250 lbs. Pre compress spring hangers 1 inch deflection_rev.2
- Model HS-1G 3600 lbs. Pre compressed spring hangers 1 inch deflection_rev.2
- 2" Deflection
- Model HS-2D 75-1320 lbs. Pre-Compressed Spring Hangers 2 inch deflection_rev.3
- Model HS-2E 80-2700 lbs. Pre compressed spring hangers 2 inch deflection_rev.2
- 3" Deflection
- Model HS-3C 75-1165 lbs. Pre compressed spring hangers 3 inch deflection_rev.2
